The traditional process like cutting, manually skiving, Will become more difficult to meet high efficiency, high quality and diversified needs, It is bound to lead to high labor costs, high scrap rate , material loss and so on series problems, additionnly, there are many problems, such as poor product uniformity, increased management costs and so on.

 制鞋業港寶沖裁、手工削邊等傳統工藝，將越來越難以滿足高效率、高品質、多元化的需求，勢必會導制人工成本高、產量低、產品合格率低、材料浪費等一系列問題，另外還存產品統一性差、增加管理成本等諸多問題。

How to solve those problems? How to quickly promte capacity in shoe industry?

如何解決這些問題？快速提升制鞋業產能？

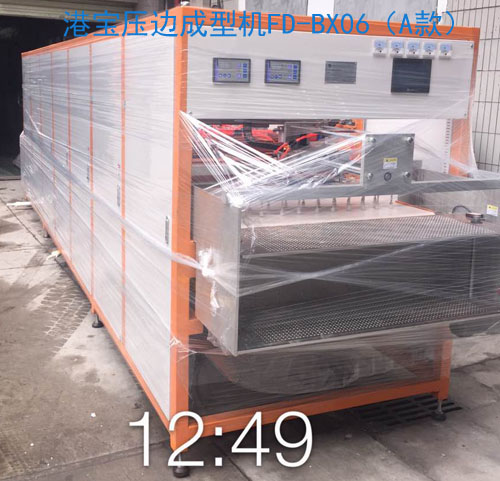

FD-BX06 Model(Side pressing and forming hot-melt GangBao equipment) replace traditional process and completely sovle above problems, achieved rapid mass production, reduce production costs and labor costs, reduce resources waste, greatly improved product quality and product uniformity. which resulted shoe industry modularization, informationization, electronization.

FD-BX06型兩款壓邊成型熱熔膠港寶設備取代多個傳統工藝，完全解決以上問題，達到快速批量生產，降低生產成本及人工成本，減少資源浪費，大大提高產品品質及產品統一性。從而使產業模塊化、信息化、電子化。

The following is a collection of data comparison between traditional GangBao cutting&manual skiving and FD side pressing molding equipment:

以下是本公司采集的傳統港寶沖裁、手工削邊工藝和使用FD壓邊成型設備數據對比：

Calculation based on a normal molding line, can produce 3500 pairs of shoes every day, and monthly production is 100 thousand pairs of shoes.

按一般鞋廠一條成型線，每天能生產3500雙鞋子，一個月生產10萬雙鞋子計算

Traditional GangBao cutting and manual skiving process 傳統港寶沖裁、手工削邊工藝：

A. One skilled operator can cut 4000 pcs/day, 104000 pcs/month,which equal to 26000 pcs shoes, so that at least 3 operators required per month to meet capacity demand.

A.一個熟練的削邊工人一天能削4000片，一個月削104000片，相當于26000雙鞋子，那么一條線每個月需要3個削邊的工人才能滿足生產需要。

B. Based on the calculaton that GangBao material cost 1.00 RMB per pair shoe, so that the material cost is 100000.00RMB per 100000 pairs shoes each month.

B.按每雙鞋子使用港寶材料成本1.00元計算，每個月10萬雙鞋子為100000.00元材料成本

Total cost: material cost 100 thousend + Labor cost 3X3500.00RMB=110500.00RMB (exclude other cost for cutting and material loss)

綜合成本：材料費10萬+人工費3*3500.00元=110500.00元（不計算其他裁斷、取料、材料損耗等成本費用）

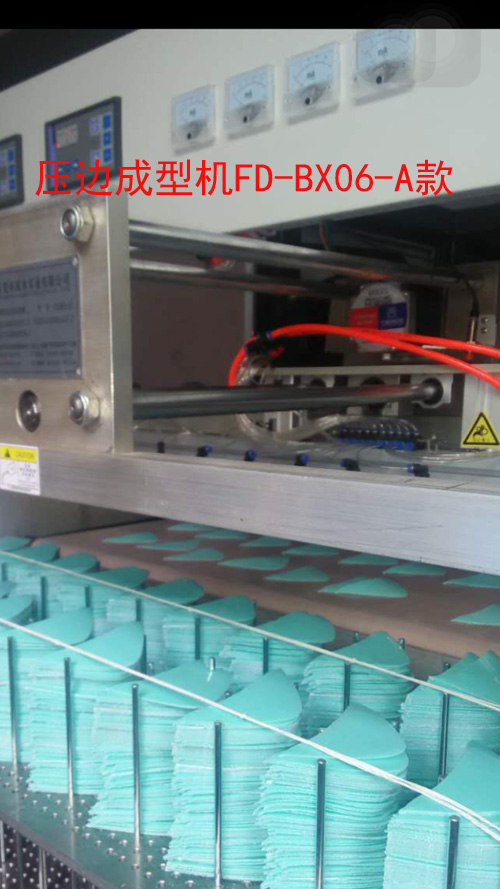

Using side pressing and forming equipment使用FD-BX06壓邊成型機

Hourly capacity is about 7000 pcs per equipment, and 17500 pairs shoes per day, 455 thousend shoes per month,can completely satisfy GangBao demands for 4 shoe production lines.

一臺機每小時產量為7000片左右，即每天生產17500雙鞋子，每個月能生產45.5萬鞋子，完全可以滿足4條生產線港寶片的使用量

A. Only 1 operator required, labor cost 1x 3500RMB=3500.00RMB

A.機臺只需要1個人操作，人工費用1*3500.00元=3500.00元

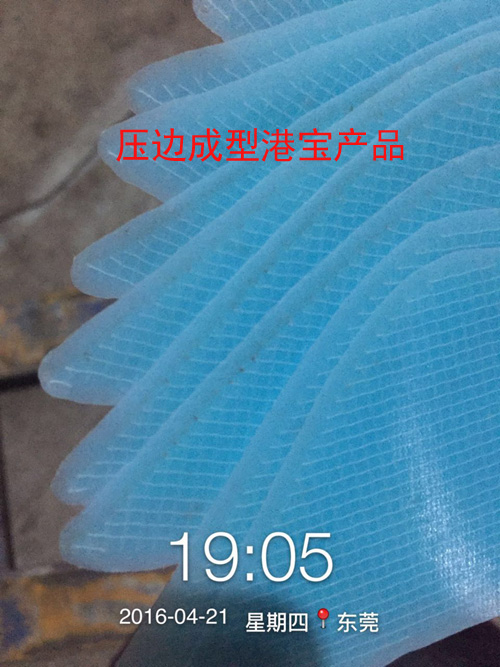

B. Side pressing forming equipment is hot calendering, During skiving,there is 15% extention effect on the edge, compared to origninal product only 85% area required calendering to meet fully requireements.

B.壓邊成型機的成型工藝是熱壓壓延成型，即產品在薄邊的過程中，產品邊緣有15%的順薄延展增大的效果，所以只需要以前產品的85%大小面積即可壓延成型完全符合需要使用的產品。

Based on the material cost calculaton that 100 thousend pairs shoes per month, 100 thousend x 1.00 RMB x85%=85000.00 RMB

按鞋廠每個月10萬雙鞋子的生產使用材料費用，每個月需要10萬*1.00元*85%=85000.00元。

Total cost: 3500.00+85000.00RMB=88500.00RMB

綜合成本： 3500.00+85000.00元=88500.00元

Cost saving: 110500.00RMB-88500.00RMB=22000.00RMB

可節約成本： 110500.00元- 88500.00元=22000.00元

Yearly cost saving 22000.00*12=264000.00 RMB！！！

一年可節約22000.00*12=264000.00元費用！！！
