機器型號
Model
|

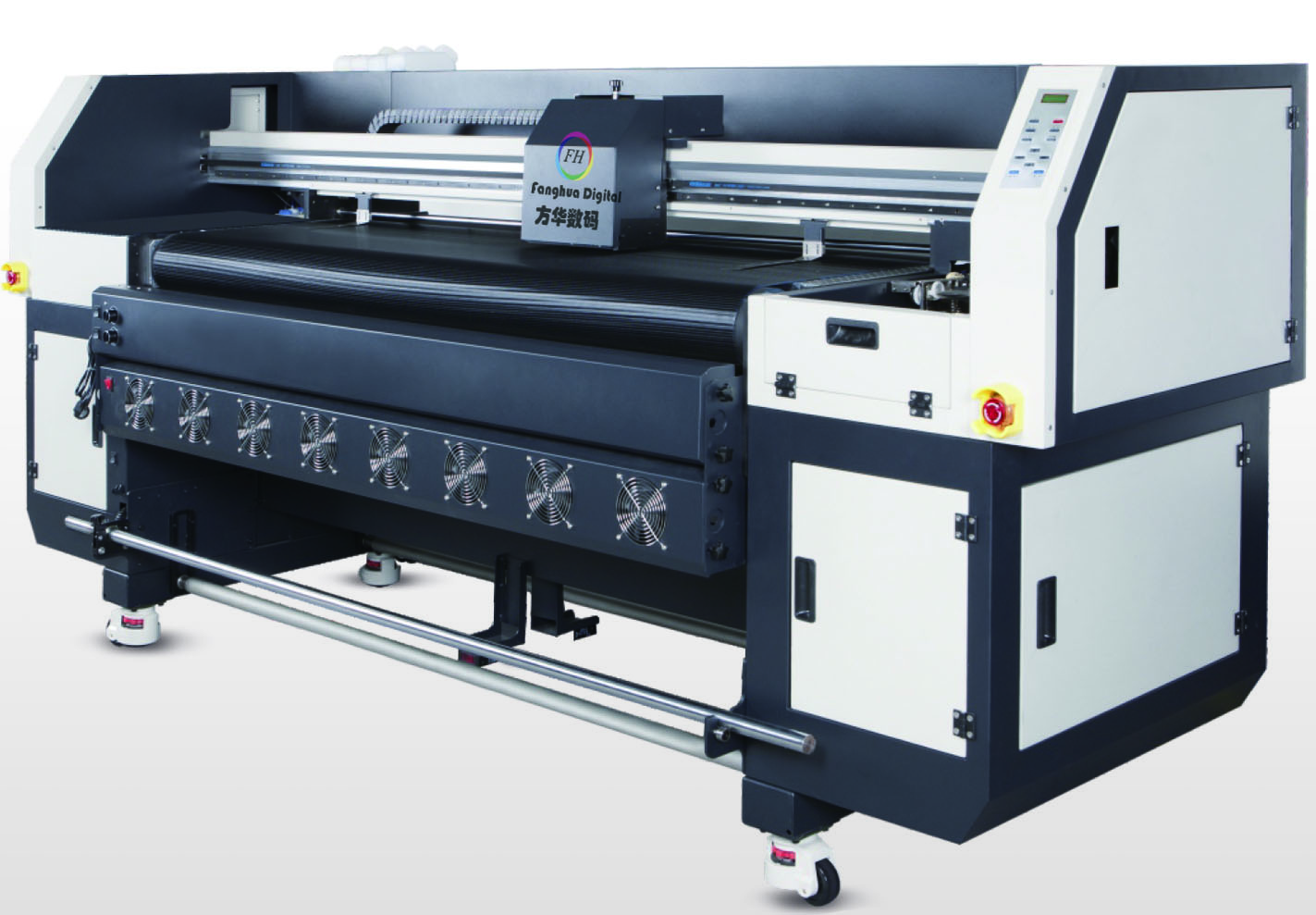

FH-UV1800L
|
設備尺寸/包裝尺寸
Machine size/Packing size
|
L:3030mm*W:850mm*H:750mm
L:3200mm*W:1000mm*H:1400mm
|
|
打印幅面
Print area
|
180CM
|
電源電壓
Voltage
|
AC110V/AC220V,50/60Hz
|
|
打印噴頭
Print head
|
GEN5*3-6
|
額定功率
Power
|
5KW
|
|
打印方式
Printing way
|
白，彩+光油
|
材料加熱方式
Media Heter
|
前置加熱烘干(可分開獨立加熱)
Pre/Back Heater(can be controlled separately)
|
|
打印厚度
Print thickness
|
1.5-8MM
|
工作環境
Operating environment
|
濕度(Temperature)15℃-30℃;
濕度(Humidity)35%-65%
|
|
打印速度
Print speed
|
4PASS:22 ㎡/h,6PASS:16 ㎡/h,12PASS:12㎡/h
|
設備重量/包裝重量
Gross Weight
|
500KG/650KG
|
|
收紙系統
Media Take-up Device
|
單電機自動收紙系統
Single motor automatic media take-up device
|
墨水類型顏色
Color Type
|
4-6色(C/M/Y/K/LC/LM)+白墨(White)+光油(Gloss)
|
|
RIP 軟件
RIP Software
|
Maintop V5.3/Maintop V6.0/Photoprint
|
打印材質類型
Print Material
|
皮革,PVC,TPU,透明貼,軟膜
Leather,PVC,TPU,Photographic Paper,
Transparent stickers,Soft film and so on.
|
