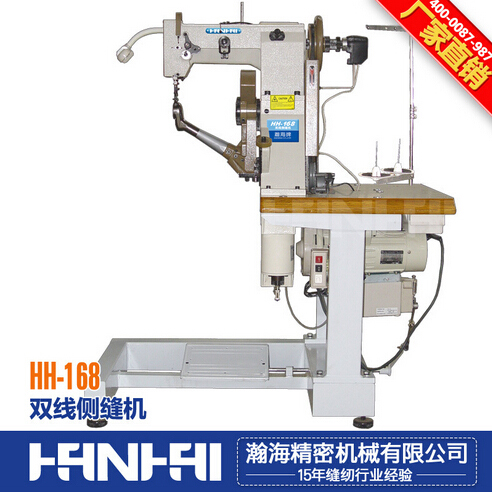

HH-168
雙線安全鎖縫座式內線機
Two tread lockstitch seated type shoe-border stitcher
特點(Features):
1.分離式傳動軸設計,遇任何操作阻礙即迅速空轉五圈后自動切斷電源。
2.可車縫至18股粗線,牛角保證不需更換。
3.起落針縫部位絕無線頭線尾。
4.設有雙軸承固定,因此主軸耐用無比。
5.配置無段變速馬達,可自動定針及自動提升押腳。
1.Separable-type transmission pulley that will run five idle turns and cut off powerautomatically when encountering any obstacle in operations.
2.It is able to stitch with the No.18thread with out changing the rotating hook opener.
3.No thread ends at needle points.
4.Double shaft positioning thus improving durability of the main shaft.
5.Equipped with P.I.V motor to position the needle and lift the presser foot automatically.
用途(Application):
適用于運動鞋、休閑鞋、涼鞋、溜冰鞋、等各種鞋類產品。
Suitable for kinds of shoe products, such as sports shoes, leisure shoes, sandal, roller skates, etc.
技術參數:
縫制速度:無級調速
線跡:鎖式雙線
線跡長度: 3-13mm
縫制厚度: 1.5-6mm
機針: CP*5
電動機: 750W/單相220V三相380V /50-60HZ
機器凈重: 126Kg
國內連包裝:158KG
國內包裝尺寸: 118*65*140(長*寬*高cm)
出口連包裝: 192Kg
出口包裝尺寸: 114*66*140(長*寬*高cm)
