用途與特點：
本機適用于防寒鞋、休閑鞋、軍用鞋、登山鞋、勞保鞋和（低、中、高幫）靴等生產。其作用是鞋模倒置將鞋底的壓合、硫化、成型結合為一體的一次成型制鞋設備；采用機械連桿機構，達到了硫化成型過程中鎖模的作用；而且鞋模倒置也提高了制鞋過程中鞋面的清潔度。

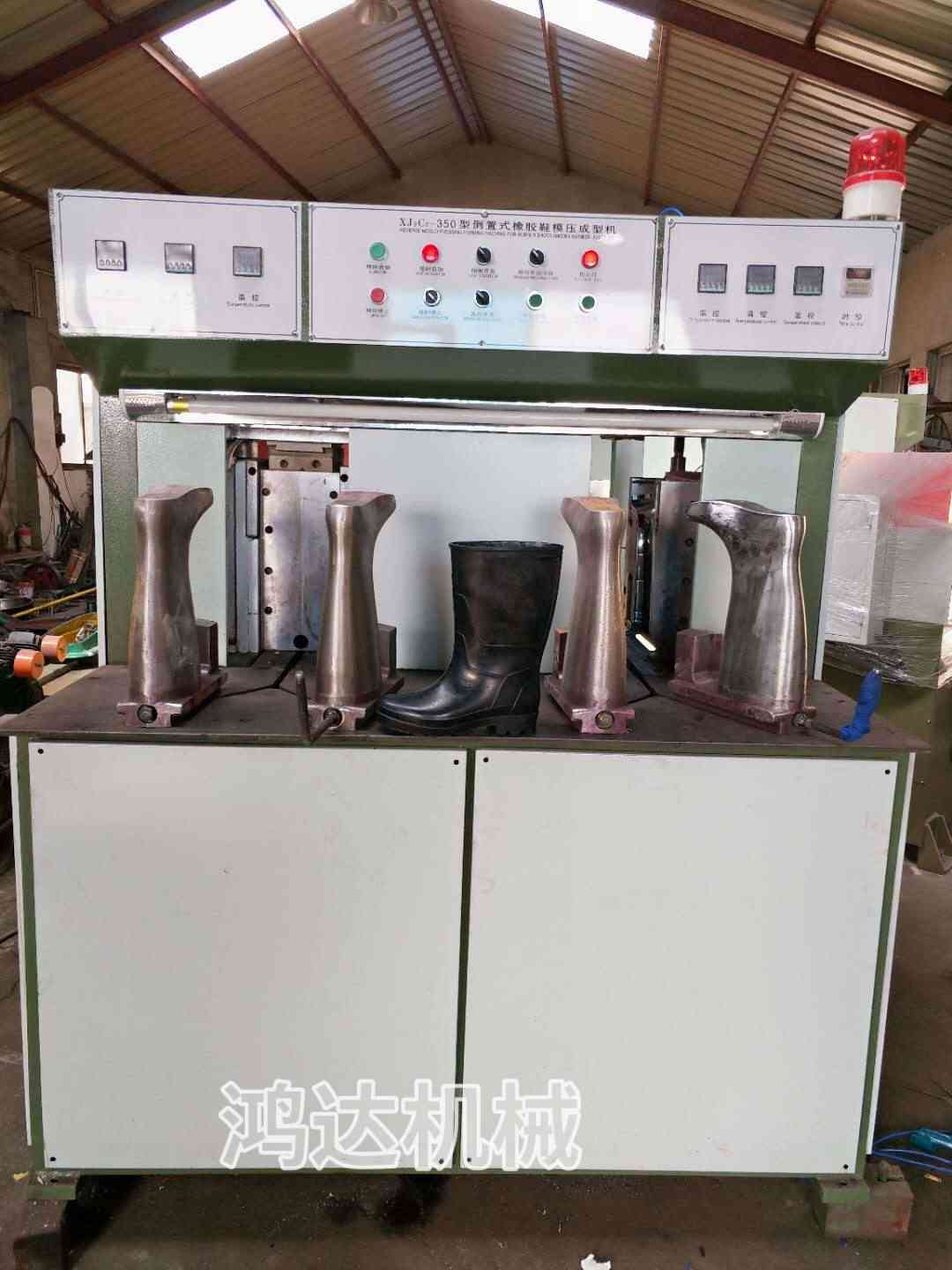

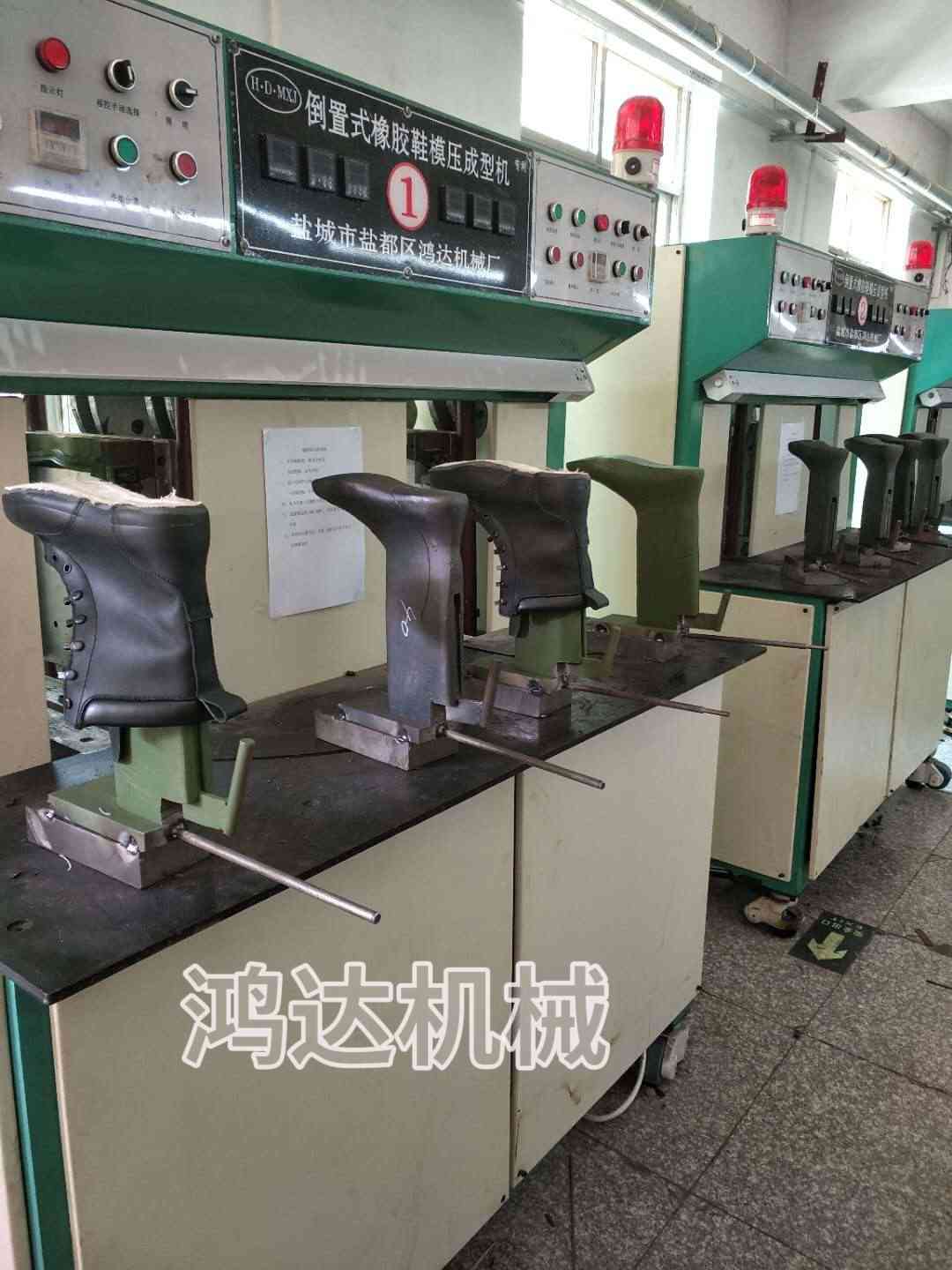

Uses and features:
The machine is suitable for the production of cold-proof shoes, casual shoes, military shoes, climbing shoes, safety shoes and shoes (with low, medium and high footwear uppers) and so on. It is one-step molding shoes making equipment used to combine Pressing, vulcanizing, molding of shoe soles by inverting the shoe molds. And it uses mechanical linkage to achieve the function of locking mold in vulcanization shaping process. Inverting shoe molds also improves cleanliness of vamps in the making process.
|
?？趶堥_寬度
|
Width of mold gate
|
130mm
|
|
底模上升高度
|
Lifting height of bottom mold
|
90mm
|
|
油泵電機功率
|
Motor power of oil pump
|
3kw
|
|
電熱功率
|
Electric power
|
9kw
|
|
系統壓力
|
System pressure
|
5.5Mpa
|
|
溫度范圍
|
Temperature range
|
0℃--260℃
|
|
電源電壓
|
Supply voltage
|
380v50HZ
|
|
外形尺寸
|
Boundary dimension
|
1466×1165×1906mm
|
|
機器凈重
|
Machine net weight
|
1800kg
|
