配置雙裁剪頭，循環式傳送帶，支持超級排版（包含分方向排版及固定角度排版），具有智能分頁，全自動智能傳送，自動定位，輔助糾偏等功能，并接受PLT\CUT\DXF等多種格式文件。
該款機型適合真皮及多層卷性材料的智能切割。

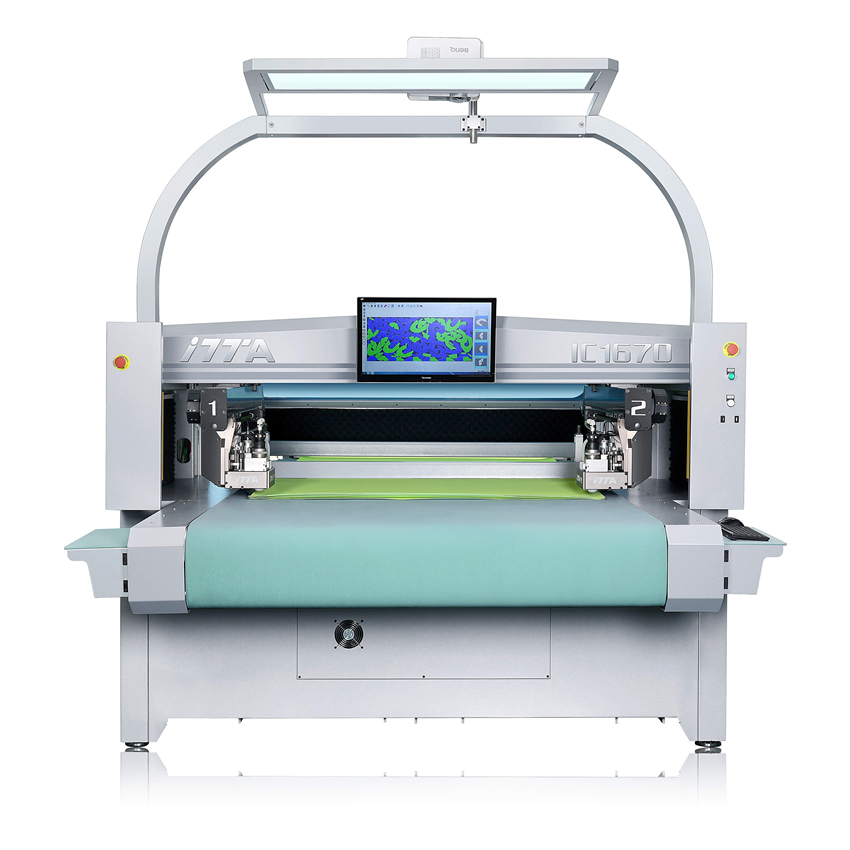

IC1670DH is equipped with two working heads and a endless conveyor belt. It offers automatic nesting technique, intelligent feeding system, intelligent position system, auto transfer, accepts document of DXF/PLT/CUT format.
It is very suitable for cutting the material of leather, artificial leather, textiles and fabrics.
機器參數TECHNICAL PARAMETER：
|
型號
Model
|
IC1670DH
|
IC2010DH
|
|
機器尺寸（LXWXH)
Machine dimension
|
3100X2420X1700mm
|
3800X2710X1550mm
|
|
雙刀頭切割范圍（LXW)
Double working areas
|
1600X700mm
|
2000X1000mm
|
|
5工具
5 tools
|
1刀片/2個沖孔器/1個銀筆/ 一個做記號的錐針
1 electrical/penumtic blade/2perforators/1 pen/1 punch
|
|
最快切割速度
Mximum cutting speed
|
84米/分鐘（約3307inches/min)
|
|
功率
Power
|
3-phase 200-400VAC, 50-60HZ,
12.5KW monopase 200-240VAC, 50-60,2KW
|
|
配附刀具振動頻率
Vibration frequency of the knive
|
15000-18000times/min
|
|
氣壓
Air consumption
|
4-6pa
|
