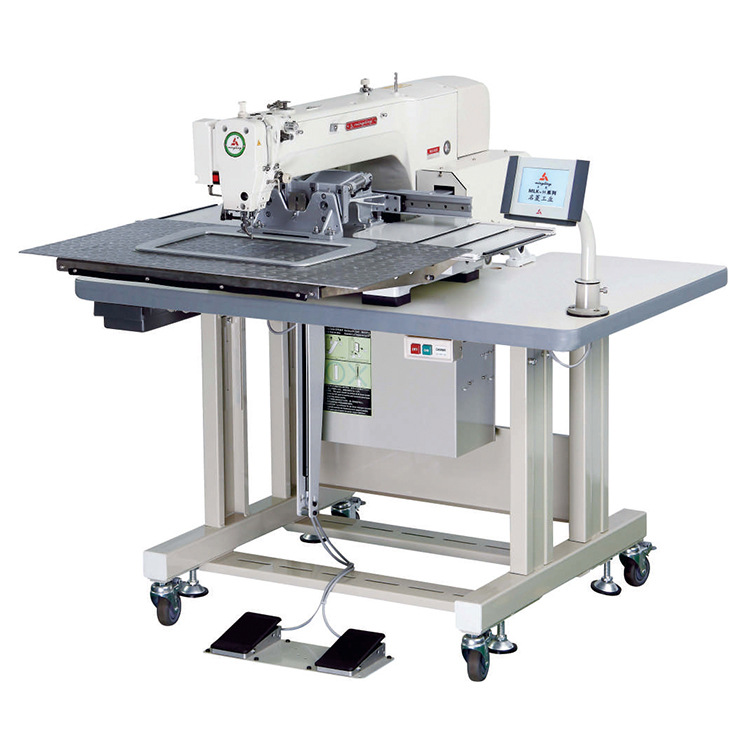

1、實現低張力平穩縫紉 To realize low tension stable sewing

（伺服控制的高鋼性送布裝置，同步度極高的針桿/挑線桿裝置，可在低張力的情況下進行底面線收線一致的縫制。Servo control of high steel material feeding device, synchronization high degree of needle bar / take-up device, can be carried out under the condition of low tension of upper and bottom thread sewing.）

2、即使在布料重疊部位，也能使底面線松緊度保持一致 The overlapping part event hough in material, also can make the bottom thread tightness consistent

（可在操作盤上輸入一個數值輕松設置壓腳的高度。根據布料的厚度設置一個

合適的壓腳高度可防止過多或不足的壓腳下壓操作，從而使底面線松緊度保

持一致。

使用編程器PD-3000*，可在縫紉數據中設置中間壓腳高度。由于可設置高

度，所以高度可根據布料厚度的改變而改變。

Can easily enter a number on operation panel and set the pressure foot height. According to the thickness of the material set up appropriate height of pressure foot and prevent the excessive or in sufficient pressure foot operation , so that the bottom thread tightness consistent.

The use of PD-3000* programmer can set the middle height of pressure foot in sewing data. Pressure foot height setting can be changed according to the material thickness.）

3、無需傾斜機頭就可調節驅動針護板 Without tilting the machine head can be adjusted by driving a needle guard

（無需傾斜機頭，可輕松從機床側面調節驅動針護板。

無需傾斜機頭，也可調整機針與旋梭尖之間的間隙。

No need to tilt the machine head, can be easily adjusted by driving needle guard.

No need to tilt the machine head, also can adjust machine between the  needle and hook point.）

4、最高縫紉速度2,700針/分鐘(使用3.5mm針距) Highest  sewing speed 2700stitches/min using stitch (3.5mm)

（實現了使用3.5mm針碼縫紉時2,700針/分鐘的高速縫紉。由于采用了名菱公司獨創的

電腦直接驅動式馬達，起動/停車反應更快。與傳統機型相比機械操作時間縮短了約

28%，生產效率得到進一步提高。Achieved using 3.5mm stitch sewing 2700 / min high-speed sewing. Due to the adoption of the mingling Corporation the original direct drive servo motor, starting / stopping reaction faster. Compared with the traditional model of mechanical operation time shortened by about 28%, the production efficiency is improved.）

5、機針貫穿力得以加強 Increased high penetration force

（與傳統機型相比，使用電腦直接驅動式馬達的設備功率更強勁(550W)。即使在低速縫紉時也可獲得強大的機針貫穿力，厚料的縫制也能順利進行。Compared with the traditional model, the use of servo motor more stronger than motor (550W).Even in the

low-speed sewing can get strong penetration force, and sewing to the thick materials can be successfully.）

6、耗電低 Low power consumption

（電腦直接驅動式機械系統中采用了高效節能的馬達，可減少傳輸過程中的能

量損耗。與傳統型號相比，耗電減少了約15%。與市場上同類縫紉機型相比，

本設備是電耗最低的電腦花飾機，同時實現了高速縫紉和強大的機針貫穿力。Computer direct drive type mechanical system uses a motor with high efficiency and energy saving, can reduce the transmission process. Compared with the traditional model, the power consumption is reduced about 15% compared with the market similar sewing models, this equipment is the lowest power consumption of computer decoration, and realizes high-speed sewing and strong high speed sewing machine with high penetration force.）

7、輕松準確地定位布料 Easily and accurately positioning of cloth

（設定了兩步下降的大壓腳，大壓腳可下降并暫停在中間位置，然后下降到最

低點。在中位設置一個合適的高度，便可快速準確地定位布料。這可以減少

由于錯誤定位縫制物而造成的額外操作，從而節省了縫紉的總循環時間。Set a double step clamp, clamp can be stop and suspended in the middle position, and then down to the lowest point. Can set up a suitable height in the middle position, can quickly and accurately positioning the material. This can be reduce the extra operation caused by the positioning error of the sewing matter, saving the total cycle time during sewing.）

8、縫制圖案輕松變換 Easily transformation of sewing pattern

（大壓腳更換快速 Simple to change clamp）

（拆卸4顆螺絲即可快速更換大壓腳。也可通過定位銷準確安裝。 Remove the 4 screws to replaced clamp, also can be installed to the accurate position rapidly）

（準確定位以更換送布板 Accurate positioning in order to change the feed plate）

（對準送布板和底板的參照孔，將送布板裝到底板上，擰緊螺栓，即可完成

安裝。可方便地準確定位送布板。 According to the reference of the feeding plate to the bottom plate hole,the feeding plate easily cna fix on the bottom  plate, tighten the bolts to complete the installation. Accurate positioning of plate can be conveniently fix up.）

9、內置大容量內存 Set to large capacity of memory

（縫紉機可在其內存中存儲大量數據（512個圖案，500,000針*）。每次更改縫

紉圖案后無需重新裝載縫紉圖案。另外，CF卡(CompactFlash)閃存卡用作于

存儲媒介，讀寫速度加快，可將大量數據復制或轉移至其他縫紉機或電腦中以

便進行數據管理。 The sewing machine can be stored in the memory of large amounts of data (512 patterns, 500000 stitches *). Every time you can change pattern without reloading the sewing pattern. In addition, the CF card

(Compact Flash) flash memory card with to the storage media, read and write speed, large amounts of data can be copied or transferred to other sewing machine or electric copy or transfer to other sewing machine or computer fo data management.）

10、PD3000*，一款具有彩色大液晶顯示屏及操作簡單的編輯器 PD3000*,-Large and simple color crystal operation panel

（根據圖標和命令，輕松創建縫紉數據。

縫紉數據可邊創建邊檢查?？娠@示注釋、形狀、水平和垂直尺寸以及縫紉圖案的針腳數。

縫紉數據列表與圖案形狀同時顯示，可輕松復制或轉移縫紉數據。此編輯器適用于縫紉數據管理。

可確認內存開關的說明和現在的設定值。

支持的語言有英語、中文、西班牙語、意大利語、法語、德語、葡萄牙語、土耳其語、  越南語和

日語。

~ Based on the icon and command, easily create sewing data.

~ Sewing data can be created while inspection. Can display comments, shape, horizontal and vertical dimensions and the sewing pattern stitches.

~ Sewing data list and sewing pattern shape at the same time, can easily copy or transfer of sewing data. This editor is suitable for sewing data management.

~ Can confirm the memory switch instructions and value setting

~ Supported languages are English, Spanish, Italian, Chinese, French, German, Portuguese, Turkish, Vietnamese and Japanese.）
